Кран-манипулятор на шасси грузовика

MAN MAN TGS 35.520 mit F805R.2.7 L436 TECHNO NEU

MAN TGS 35.520 - EURO 6 with F805 including L436 fly-jib and V20 winch!!!
Tipmatik - Automatic transmission

8x4
Three steered axles
STEERING / LIFT axle

Front outriggers approx. 14,000 KG

Flatbed body with sideboards
6200x2550x600 mm

Steps
Diamond plate floor
Removable sideboards
9 x LED lights
Extendable overwidth markings to 3500 mm width
Start/Stop
Rotating beacon
8 x Rail pockets
6 x Lashing eyes 6500daN
Toolboxes
Trailer hitch
Storage compartments
Storage boxes
20-foot container locking mechanism
Perforated side profile with lashing eyes 2500daN

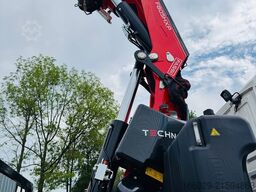

Crane: FASSI 705 R.2.7, F805R.2.7, F905R.2.7 with fully hydraulic 4-point outriggers, with 6 hydraulic extensions on the main boom, fly-jib L436 with 6 hydraulic extensions, rope winch, cross-function remote control V7, emergency stop, FSC II outrigger monitoring, AWC (automatic winch control), accessories complete for winch operation, pivoting sheave, quick coupling between main boom and fly-jib and more... TECHNO SERIES !! NEW CRANE MODEL

Endless slewing range
All hydraulic cylinders double-acting
Piston rods hard-chrome plated
Double knuckle system with PROLINK (overextending knuckle arm up to 10°)
Electronic overload cut-off device with FX800
FASSI stability control FSC-S/2 including LMB II
Emergency shut-off, as well as optical alarm (90% and 100%)
Pressure relief and load holding valves
XF system (Extra Flink) + XP system (Extra Power) + FL system (Full Lift)
Hsdpfxeyxa Dto Ahcenp
RCH or RCS radio remote control with linear levers and display of
pressure range (in bar and %) and 90% + 100% warning in the display
Danfoss D900 control block with 4 control valves mounted on the crane pillar
Emergency operation for crane control
High-pressure filter is supplied pre-assembled with piping
separate hydraulic tank (260l) with filter and oil cooler mounted on the crane base
hydraulic outriggers, on both sides hydraulically extendable, outrigger span 10.00m,
outriggers operable via radio
Standard color RAL 3020 traffic red - all cylinders painted black
IMC - System (Integral Machine Control) and ADC (Automatic
Dynamic Control) = Load-dependent speed control
Load hook and attachment bridles (short/500mm)
Transport position: folded transversely to the direction of travel
Attention: Observe operating voltage / 12V or 24V, standard 24V"

FASSI stability control FSC-TECHNO
Fassi V7S radio maxi - 8 linear levers
Proportional control block » for the outriggers
180° hydraulically swiveling support legs / » on both sides
Preparation for operation with variable pump » (LS)
Control system for 2 auxiliary functions with » 2 hose guides / hxp-techno
Auxiliary boom (Jib) L436, 6-way » hydraulically extendable
Jib Double Power (JDP)
Multi-coupling with cable entry » for jib mounted for 2 functions
Control system for auxiliary function » rope winch
Rope winch type V20 - 2,000daN, 60m rope » (12mm) with LMB and mechanical
Permanently mounted rope guide for operation with auxiliary boom (Jib)
AWC - (Automatic winch Control) for crane » Automatic rope winch control
AWC - (Automatic winch Control) for JIB » Automatic rope winch control
Work lights operable via display or radio
1 LED work light mounted on the knuckle arm »
1 LED work light mounted on the jib »
LED for 2 outriggers, not mounted » (crane)
LED for 2 outriggers, not mounted » (auxiliary support beam)
Electric rotary distributor with 14 » slip contacts
1 zinc primer from 720RA to F820RA
"Zinc primer for JIB ""L42"""
Surcharge for Dinitrol application (cavities)
Surchar
