Complete coil-fed for disc production

TIMAC TZZ-1604

Complete coil-fed cutting and feeding line for disc production
Composed of:
• Feeder/Decoiler: LARA DEMAE-10000/100/1400-D
• Cutter: TIMAC TZZ-1604 with double-station stacker
• Shear and feed table up to 1400 mm by LARA
Condition: In operation, ready for production. Designed mainly for working with carbon steel, stainless steel, and aluminum.

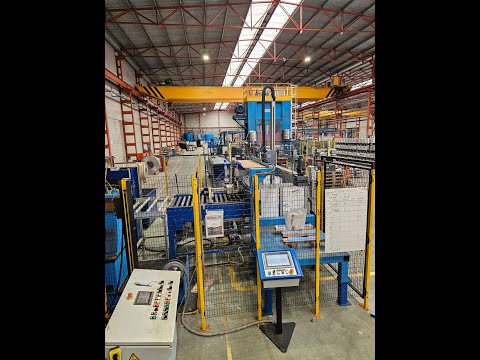

The installation combines a servo-driven straightener-feeder from LARA with a TIMAC circular shear, scrap-cutting shear, and automatic double-station stacker, allowing for continuous, precise, and safe operation.
Main components:
Hydraulic motorized decoiler with loading cart and loop control via laser sensor. Equipped with safety barriers in the coil loading area for optimal visibility during the decoiling and cutting process.
Combined straightener-feeder with 11 rollers and AC servomotor controlled by PLC + touchscreen HMI.
TIMAC circular shear with adjustable blades and diameter adjustment system.
Automatic double-station stacker with suction-cup arm and interlocked safety doors.
Integrated pneumatic and electrical systems with Unidrive inverters and a single control cabinet. Two control panels—one for each machine group—each with a touchscreen, interconnected to ensure communication and coordination between the LARA and TIMAC sections.
Table for sheet scrap removal and LARA shear.
Main technical data:
Maximum strip width: 1,400–1,600 mm (maximum 1,400 mm on straightener)
Sheet thickness: up to 3 mm (carbon steel) / 1.5 mm (stainless steel)
Blade diameter: 100 mm
Djdpfxoxr Utae Aqqskw
Installed power: approx. 16–20 kW
Electrical supply: 400 V / 50 Hz
Working pressure: 6 bar
Overall dimensions (approx.): 8.8 m (L) × 6.8 m (W) × 3.3 m (H) (L-shaped configuration, with side loading and stacking zones)
