MAN TGM 18.320 4x4 BB KRAN FASSI/PALFINGER AUF LAGER

Internal reference number for customer inquiries: 5-006 / Immediately available ---- AVAILABLE NOW AT SPECIAL PROMOTIONAL PRICE

MAN TGM 18.320 4x4 BB WITH MEILLER-TRIGENIUS TIPPER BODY WITH FASSI OR PALFINGER CRANE

A vehicle suitable for landscaping, road construction, site operations, or as a municipal service vehicle! (ALSO AVAILABLE IN ORANGE)

FASSI F135AC.0.24 dynamic (4-stage extension)
* Maximum outreach: 10.85 m
* Slewing range: 390°
* Outrigger spread: 4.37 m, hydraulic extension
* All hydraulic cylinders double-acting
* Piston rods hard-chromed
* Electronic overload shut-off device with FX500 emergency STOP and visual alarm at 90% and 100%
* FASSI Stability Control FSC-M/1 incl. LMB II pressure limiting and load-holding valves
* Control block with 4 control valves, operable from both sides
Gjdpfsxnn Ivex Aaaokc
* Controls for 2 additional functions with 2 hose guides, e.g. for grab operation

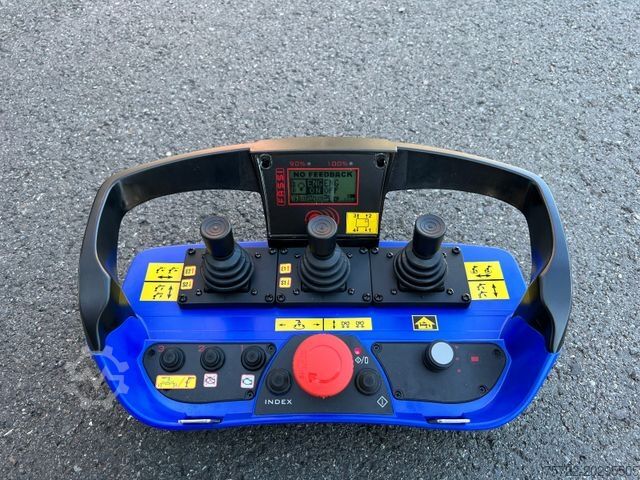

* Fassi RCS maxi radio remote control – 6 functions with 3 joysticks (2-2-2)
* 1 LED work light mounted on the articulated arm
* Working lights can be operated via RCH / display (1 b/w function)
* Working lights

Alternatively, the following loading crane is available:
* Palfinger PK 14.501 K SLD 5
* PALFINGER SOLID TRUCK-MOUNTED CRANE with KTL coating
* Hydraulic four-fold extension – 11.7 m
* Lifting moment: 142.4 kNm (14.5 mt)
* Slewing range: 420°
* Electronic overload protection PALTRONIC incl. emergency STOP and load indicator
* Operating hours counter with service interval indicator
* Scanreco remote control
* LOAD and overload display PALTRONIC at the radio control panel
* 5 selectable speeds

Vehicle:
* MAN TGM 18.320 4X4 BB loader crane tipper

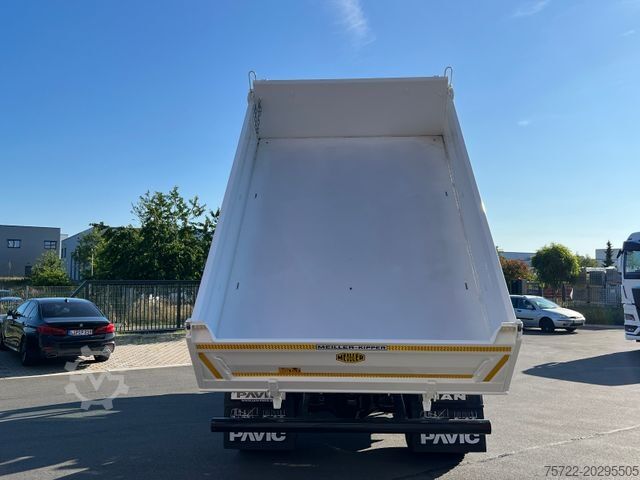

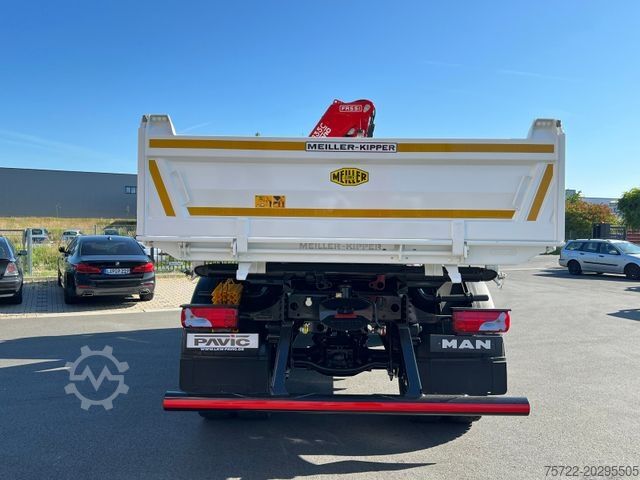

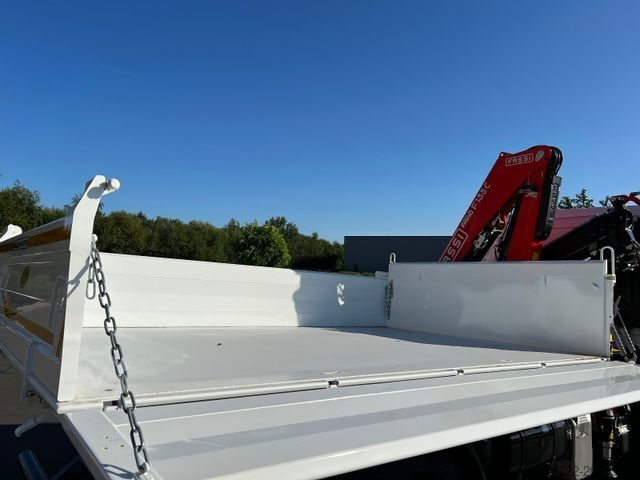

* Tipper body 4200x2420 mm, make MEILLER, type TRIGENIUS (new model series)
* Bulkhead height: 800 mm
* Sideboard height: 600 mm
* Fully retractable lashing rings in the platform floor
* Cab type CC: the compact (narrow, short, standard height)
* Wheelbase: 3,875 mm
* Spring suspension front/rear (can also be leaf/air suspension at the front)
* Drive: 4x2
* Tires: front axle 2x 295/80R22.5, rear axle 4x 295/80R22.5
* GVW: 18,000 kg
* MAN TipMatic automatic transmission
* MAN D0836 LFLAP diesel engine, 235 kW (320 hp), 1,250 Nm torque, Euro 6e
* Transmission feature: EfficientRoll
* Cruise control
* Rear axle differential lock
* MEILLER axial pump 270/45
* Tipper operation from driver’s cab
* MAN EasyControl control panel, 4 functions, can be operated externally when the door is open
* Ringfeder trailer coupling type 4040/G150B
* Dual-line brake connection at frame end
* Sun visor in front of windshield
* Central locking with remote
* MAN Media System Navigation Advanced 7 inch
* Online traffic info for navigation
* Smartphone integration
* Heated and electrically adjustable rear and wide-angle mirrors
* Air-suspended driver comfort seat with lumbar support, shoulder adjustment and heating
* Adjustable driver’s seat belt height
* 2 work lights on cab roof
* 2 halogen rotating beacons on cab roof
* And much more

Financing, leasing, or hire purchase available. For further questions, our sales team is happy to assist you. This is a non-binding offer. Subject to prior sale, errors and modifications.
