Трехсторонний самосвал

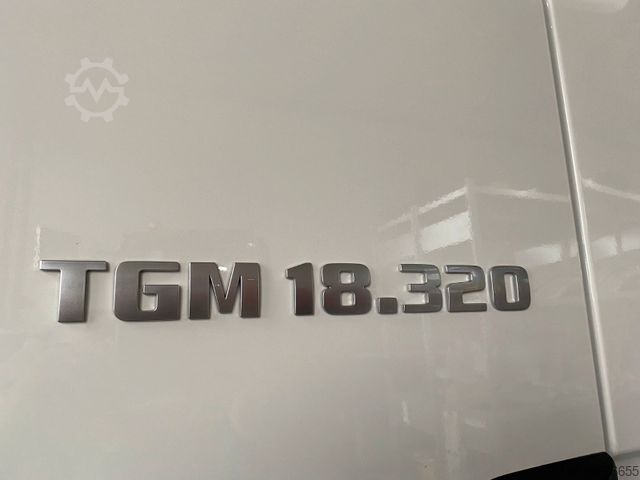

MAN TGM 18.320 /4x2/BL/Meiller/Kipper/Kran/Funk/ Neu

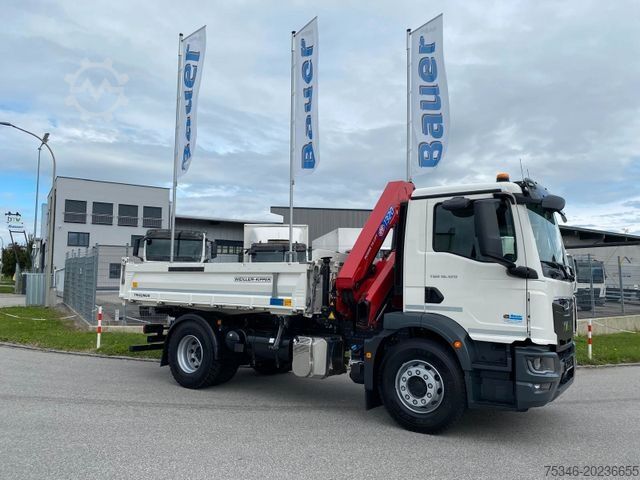

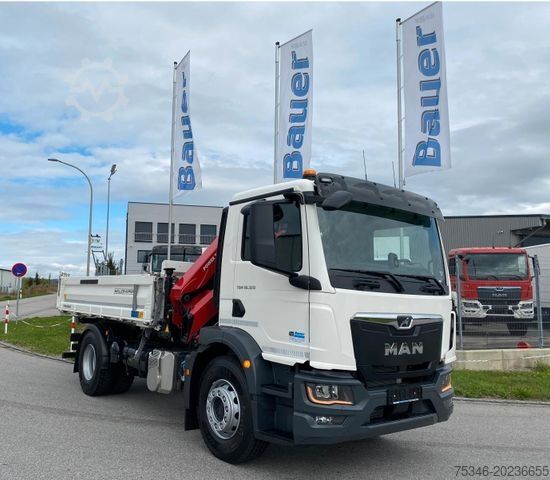

New vehicle, 18 t GVW. MAN TGM 18.320 BL with Meiller three-way tipper body, equipped with a brand-new HMF 1320K-RCS loading crane featuring a hydraulic triple extension, radio remote control, dual hydraulic swing-out outriggers, rotator and grapple attachments (hydraulic control circuits 5 + 6), EVS system, Meiller Trigenius D212 three-way tipper, 320 HP, automatic transmission, high-performance engine brake (EVBec), trailer hitch with air and hydraulic connections for tipper trailer, air conditioning, rear axle with air suspension, reversing camera, Driver Seat Package Plus, central locking and much more.

Extended MAN manufacturer warranty from the date of registration: 24 months and up to 100,000 km
ATS warranty from the date of registration: 48 months and up to 240,000 km

Truck Specification:

Mileage: 1,300 KM
Cab: short (CC), rear window
3 seats
Drive: 4 x 2
Engine: Euro 6 E
Wheelbase: 3,875 mm
Meiller Trigenius D212, body dimensions: 4,200 x 2,450 mm, drop sides 600 mm high
Front wall: 800 mm high
Tipper platform floor: 4 mm
Load securing: floor and side lashing points
Side and rear wall height: 600 mm
Tipper tailgate: swinging and fold-down
Transmission: MAN PowerMatic 08.13 OD automatic
Control: MAN TipMatic steering column stalk
Transmission function: MAN Idle Speed Driving
Trailer coupling: Rockinger type 400 G 150 A, with air connections
Trailer load: 21,000 kg
Gross train weight: 36,000 kg
Tipper hydraulic connections at rear for three-way tipper trailer
Front axle: leaf suspension; rear axle: air suspension
Rear axle differential lock
Front axle load: 7,500 kg; rear axle load: 11,500 kg
Stabilizer front and rear
Shock absorbers front and rear
Axle ratio i = 5.29
Full braking assistant
Emergency braking assistant (EBA)
Lane departure warning (LDW)
Turn assist
Driver attention monitoring (MAN AttentionGuard)
Tire pressure monitoring system (TPMS)
Reversing camera system
Traffic sign recognition
Front Detection
EBS with ABS and ASR
Disc brakes front and rear
ESP
MAN EVBec high-performance engine brake, multi-stage
Anti-roll away system (MAN EasyStart)
Air conditioning
Cruise control
Sun visor
Central locking
2x LED beacons on cab roof
2x work lights behind cab roof
Multifunction steering wheel
Daytime running lights (LED)
Electrically adjustable and heated mirrors
Electric window lifts
Driver seat package Plus: air suspension, height-adjustable belt, seat heating
Comfort seat covers
MAN Advanced 7-inch media system
MAN Sound System
Smartphone integration
Brand new, unregistered vehicle with 2-year MAN factory warranty

Loading Crane Equipment:

Dodpfx Asxlwntofiscn
New HMF 1320K-RCS loading crane with hydraulic triple extension
Manufacturer warranty until 09/2027
HMF SC radio remote control with linear levers
Rotator and grabber option (hydraulic control circuits 5 + 6)
Lifting capacity (manufacturer data): approx. 4.30 m / 2,690 kg // 6.20 m / 1,810 kg // 8.20 m / 1,320 kg // 10.4 m / 1,030 kg
Hydraulic outreach: 10.4 m (1,030 kg)
Moment rating: 11.1 mt
Dual hydraulic, swing-out outriggers
Autoswitch for automatic mode change between EVS/CYL operation
Temperature monitoring
LED headlight at knuckle joint (3040 lm)

Net price plus 19% VAT. Attractive financing offers available on request. All details provided without guarantee. Subject to errors and prior sale.

Internal vehicle number: 2576
