Stamping press (Servo) + decoiling line

Haulick RVD 4000 - 3000

Power: 4,000 kN
Bolster area: 3,000 x 1,400 mm (W x D)
Clamping surface table: 2.950 x 1.500mm
Clamping surface ram: 2,950 x 1,240 mm
Daylight: 600 mm (stroke down and adjustment on top)
Frequency: 5 - 100 rpm, infinitely variable
Stroke: 20 - 200 mm, automatically adjustable
Ram adjustment: 150 mm (motorized)

Design:
- With servo technology, speed of ram adjustable, possible to pendle
- Table - clamping plates divided and manually adjustable
- 8-fold sliding guide
- motorized oil - central lubrication
Bwedpfxepvlf Sj Aclew
- automatic ram adjustment
- pneumatic ram weight compensation
- electromotive stroke adjustment
- control Siemens + Fanuc
- visualization Siemens Panel PC in mobile desk
- tool safety device 8-fold
- tool data memory
- 2-channel press force measurement
- Hydraulic overload protection
- T-slots in table and ram
- Longitudinal groove for tool centering in ram
- Anti vibration machine feet
- opening in the table


Equipped with a complete decoiling line make Lorenz

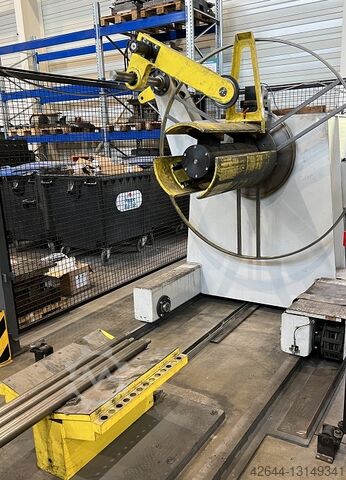

Decoiler
Load capacity: 80kN
strip width: 20 - 820 mm
Inner diameter: 470 - 520 mm
Coil - outer diameter 1.800 mm

Straightening machine
strip width: max. 820 mm
Strip thickness: 0,5 - 4,0 mm
Straightenable cross section: 1.600mm²
Number of rolls: 9 pcs, Ø 65 mm + 2 pcs feeding rolls
Speed: 0 - 30 m/min

Electronic roll feed
Strip width: max. 820 mm
Strip thickness: 0.5 - max. 6.0 mm
Cross section: max. 2.400 mm²
Number of rollers: 2 pcs. Ø 120 mm
