Низкорамный полуприцеп

FAYMONVILLE Multimax Satteltieflader (1+2) - nachlaufgelenkt

You can find our complete vehicle inventory, including vehicles available immediately and at short notice, on our website.

Excerpt from the equipment list. Full specification available on request.

Gooseneck
* Gooseneck in SNT design to optimize loading area length, approx. 3,700 mm long
* Rear with chamfer approx. 1,000 mm x 10°, for tractors: 4 x 2, 6 x 2, and 6 x 4
* Front wall made of steel, removable, approx. 400 mm high
* ASPÖCK-UNIBOX on the front connection panel with sockets
* 3 kW electro-hydraulic unit for controlling hydraulic operations, except for hydraulic winches
* Outer beams on the gooseneck with mounting holes for bolted lashing rings
* 2 pairs of screw-in lashing rings included (LC 5,000 daN)
* 1 pair of recessed lashing rings in the rear area of the gooseneck (LC 10,000 daN)
* Approx. 40 mm hardwood flooring over the gooseneck
* 2-inch kingpin
* Guide plate on the gooseneck for the fifth wheel plate, approx. 500 mm wide
* Round NATO socket at the front connection panel (Maeler & Kaege VG 96 917)
* 1 pair of stakesockets recessed on the gooseneck for plug-in stakes approx. 100 x 50 mm (inside the chassis beam)

Loading platform
* Extendable loading platform, approx. 8,800 mm long with chamfer at the rear approx. 500 mm x 10°
* Recess in the platform including the chamfer for receiving the excavator dipper stick, approx. 2,490 x 750 x 210/290 mm (L x W x H)
* Continuous hardwood flooring approx. 50 mm thick on the loading platform, interrupted only between the axles
* 1 intermediate table, approx. 300 mm wide, for the extension tube with large cross-section
* Platform locking with conically welded securing profiles at approx. every 250 mm
* 1 pair of lashing rings on the front cross member (LC 10,000 daN)
* 9 pairs of recessed, outward-folding lashing rings in the outer frame of the loading area (LC 10,000 daN)
* 1 pair of fixed wheel recesses in front of the axles, open up to the gooseneck cross member, approx. 700 x 410 mm (W x D)
* 1 pair of fixed wheel recesses, approx. 1,480 x 700 x 410 mm (L x W x D), in the loading area between the 1st and 2nd axle
* Aluminium covers for the wheel recesses in front of the axles and between the 1st and 2nd axles, also serving as extension planks
* Hardwood flooring on the loading platform chamfer
* Painted-on sand coating on the outer frame of the loading area as well as on the chequered plates of the platform

Chassis
* BPW axles and suspension
* 1st and 2nd axle rigid
* 3rd axle self-steering
* 3rd axle with electro-magnetic reverse lockout, activated via reverse gear and manually
* Air suspension with lift and lower valve
* 1st axle with start-up aid
* 2 axle load gauges mounted on the left side, including axle load diagram

Tyres
* 235/75 R 17.5 3PMSF twin tyre configuration
* TPMS tyre pressure monitoring system in accordance with ECE R 141

Lighting
* 1 LED work light each on the left and right in front of the axles, wired to the tractor unit

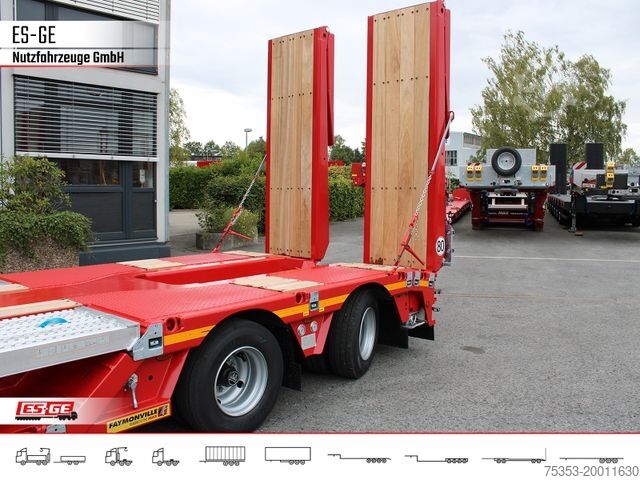

Loading ramps
* Hydraulic loading ramps DR-15/60-900-4350-HB-HV-M, a pair of two-piece steel ramps approx. 4,350 mm long and approx. 900 mm wide
* Hardwood covering
* Hydraulically foldable ramp tips
* Ramps can be moved individually hydraulically approx. 235 mm outward and approx. 215 mm inward
* Hardwood covering on the platform chamfer
* Ramp with hardwood covering

Brake system
WABCO EBS-E according to EU regulations
Chedpfxexc Axrj Agiec

Lighting system
* 24-volt lighting system
* ASPÖCK-NORDIK full LED
